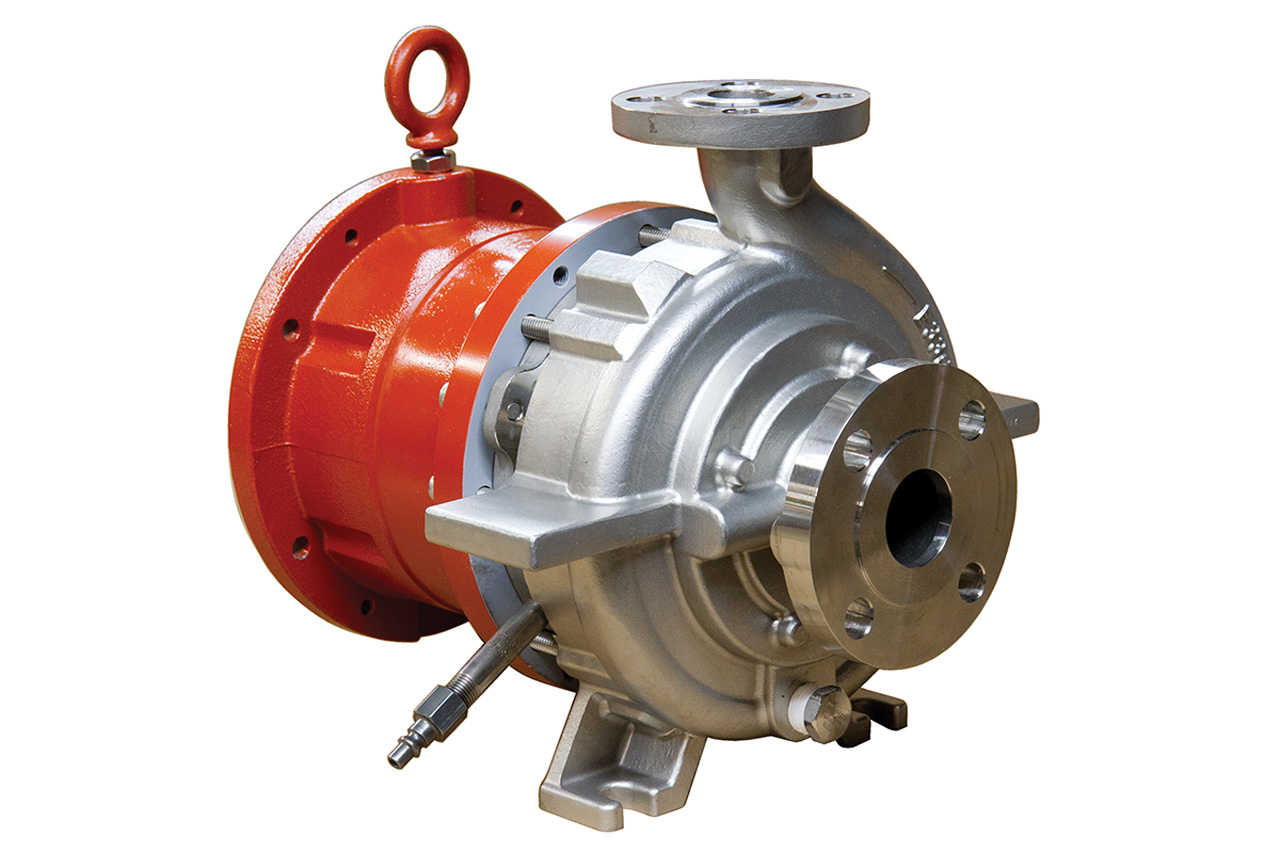

Liquiflo Endura MC Series
Magnetic Coupling Pump
Type: Centrifugal Pumps
Applications: ANSI Pump / Sealless
Sub-Applications: Close-Coupled / End Suction / Mag-Drive
Manufacturer: Liquiflo Chemical Processing Pumps
Product Description
The Endura MC Series is Liquiflo’s standard line of Group I and Group II ANSI-dimensional centrifugal magnetic coupling pump. They have handled a broad range of fluids from water to sulfuric acid. The standard materials of construction provide an excellent balance of chemical compatibility, initial cost and pump life. The Endura MC Series is available in 7 sizes to cover a wide flow range.
Applications
Best for handling toxic, noxious, crystallizing, or most other hazardous liquid since it completely contains the pumpage by isolating the drive shaft inside the pump housing.
Head
MC Series: 100 ft to 420 ft (Varies based on pump size)
Flow
MC Series: 175 GPM to 770 GPM (Varies based on pump size)
Temp Range
MC Series: 30 Degrees F to 350 Degrees F
Max Pressure
To 275 PSI
Materials of Construction
316 SS Wetted parts, Silicon Carbide Bearings, Teflon O-Rings (Other custom materials are available from the factory).
