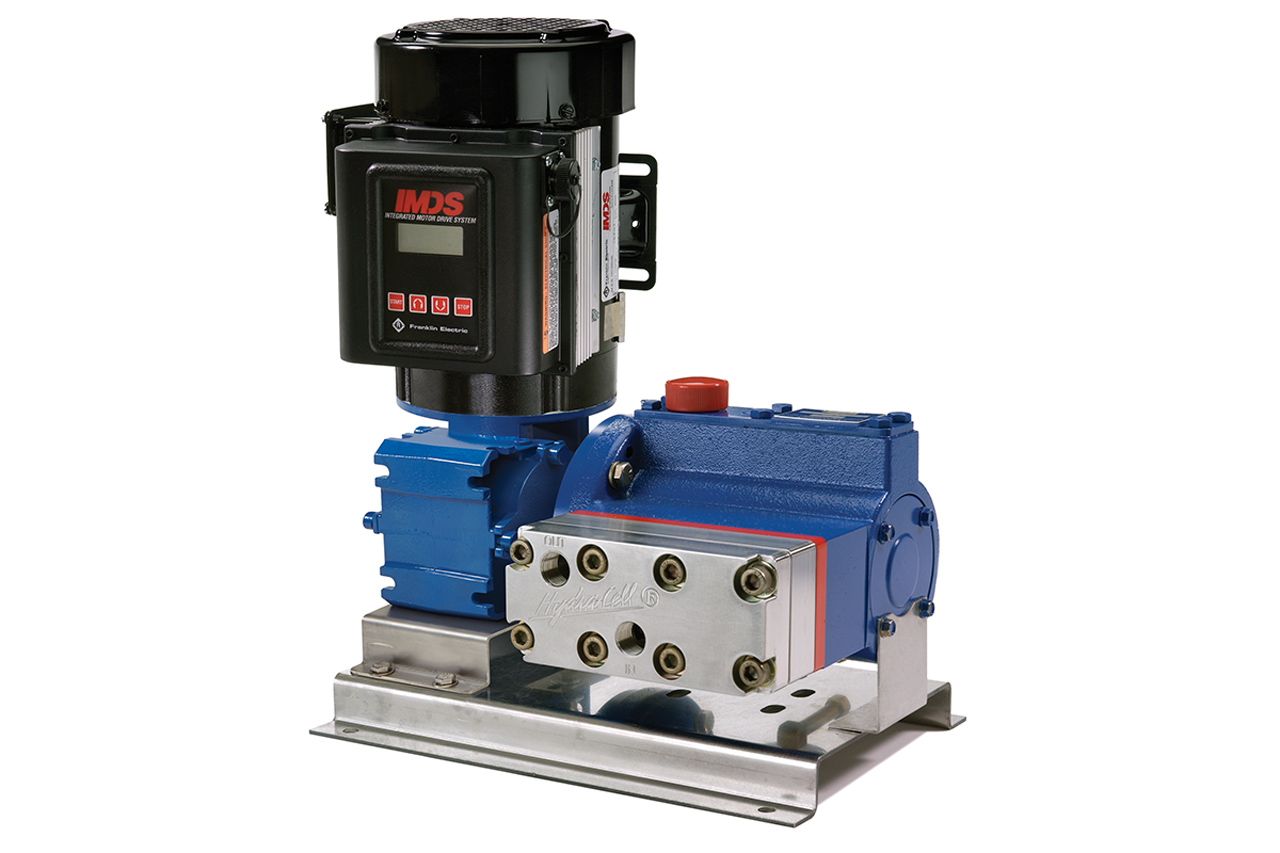

Type: Positive Displacement Pumps
Designs: Diaphragm / Metering Hydraulically Actuated / Sealless / Slurry
Designed to handle a wide range of fluids from clear water to thick slurries. Electronic flow control increases accuracy and reliability. Smaller footprint saves valuable space. One pump covers a wide range of flows and pressures – reducing inventory requirements with fast, simple field conversion. Duplexing option doubles capacity and equipment savings. Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range. Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials.
Heavy-duty industrial pumps for the processing industries, car wash facilities, plus OEM, and agricultural and landscaping applications.
To 81.4 gph
Metallic Heads: To 250˚F (121˚C) (Consult factory for correct component selection for temperatures from 160˚F (71˚C) to 250˚F (121˚C).
To 350 psi (24 bar) for Non-metallic Pump Heads, To 2500 psi (172 bar) for Metallic Pump Heads
Materials of Construction
Brass, 304SS, 316LSSm or Hastelloy C Pump Head, EPDM, FKM, PTFE, or Buna-N Diaphragm and O-Ring Materials. View Brochure for full list of materials available.
