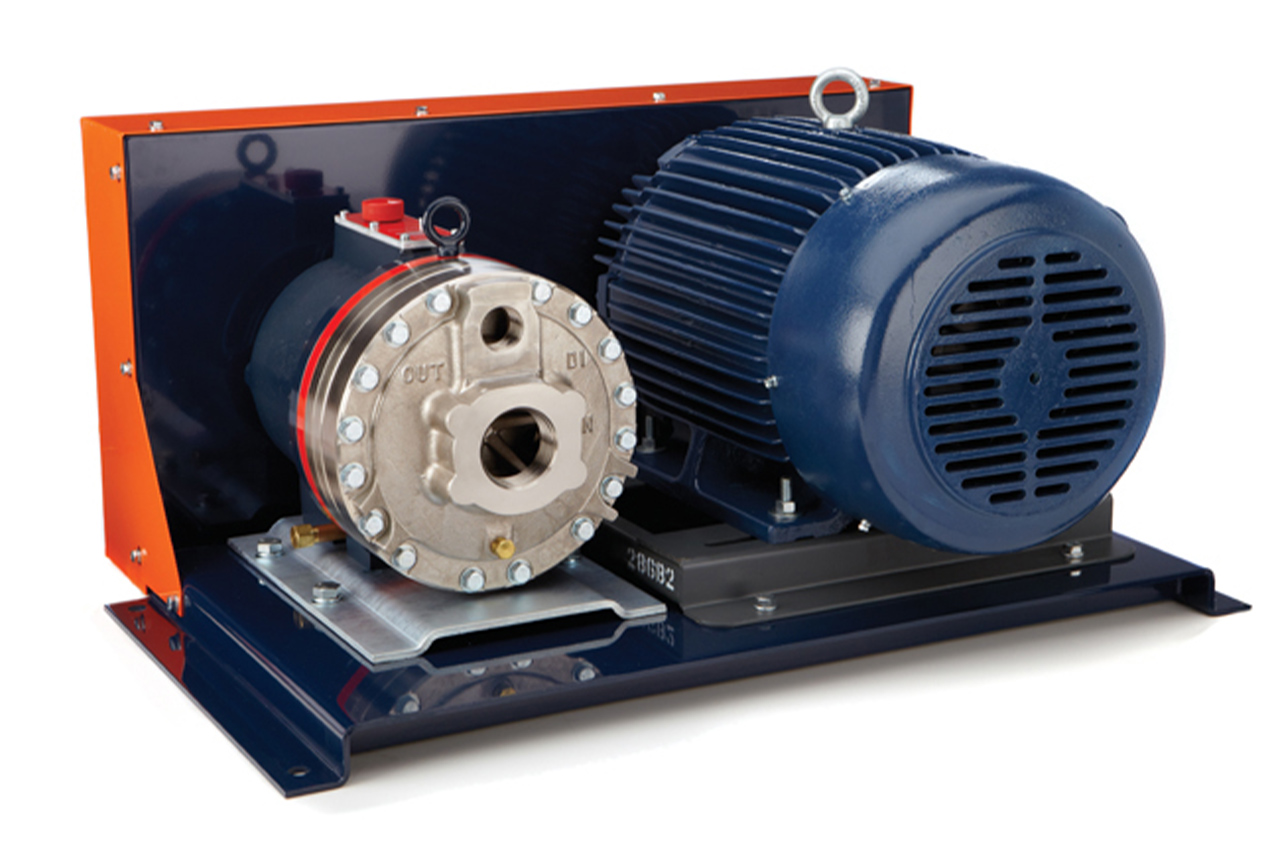

Hydracell D35/G35
Diaphragm Pump
Type: Positive Displacement Pumps
Designs: Diaphragm / Sealless / Slurry
Manufacturer: Hydra-Cell
Product Description
Versatile, Reliable Pumps for a Wide RangeHydracell F20/G20 Diaphragm Pump of Applications. Simple, compact design reduces initial investment and lowers maintenance costs. Able to run dry without Hydracell F20/G20 Diaphragm Pumpdamage (or additional maintenance) to the pump in case of accident or operator error. Tolerates non-ideal operating conditions.
Applications
Car Washes, Lawn Care, Food Industry, Water Treatment
Flow
36.5 GPM (138 l/min)
Temp Range
250 ̊F (121 ̊C) – Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
Max Pressure
1500 psi (103 bar) for Metallic Pump Heads
Materials of Construction
Brass, Cast Iron, Duplex Alloy 2205, 316LSS or Hastelloy CW12MW Head Materials, Aflas/PTFE, EPDM, FKM, PTFE, Neoprene, or Buna-N Elastomers. View Brochure for full list of materials available.
